PBA Leader Motion

Universal Joint Set

Aluminium Profile Accessories   »   Joints

Download STEP File

Product Specifications

Slot No. Material Weight Order No.

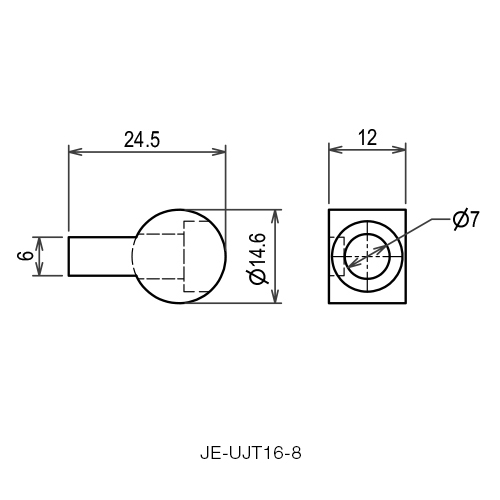

8 Casted Zinc, Nickel-plated 0.018kg JE-UJT16-8
8 JE-UJT20-8

Suitable for profiles, which need to be moved subsequently

For PS3030-8 series profile: Used with socket head cap screw M6x25 and half round nut JE-HRN6-8/3030

For PS4040-8 series profile: Used with socket head cap screw M8x30 and half round nut JE-HRN8-8

For PS4545-10 series profile: Used with socket head cap screw M8x30 and rhombus nut JE-RN8-10
