PBA Leader Motion

Rhombus Nut M3,M4,M5,M6,M8

Aluminium Profile Accessories   »   Nuts

Download STEP File

Product Specifications

Slot No. Material Weight Order No.
6 Steel, Nickel-plated 0.006kg JE-RN3-6
6 JE-RN4-6
8/3030 JE-RN4-8/3030
8/3030 JE-RN5-8/3030
8/3030 JE-RN6-8/3030
8/4040 JE-RN4-8/4040
8/4040 JE-RN5-8/4040
8/4040 JE-RN6-8/4040
10 JE-RN4-10
10 JE-RN5-10
10 JE-RN6-10

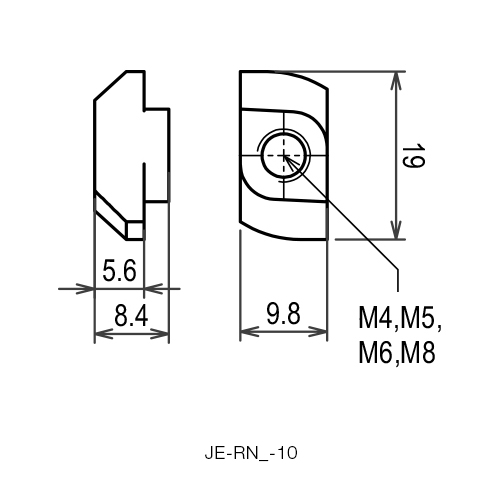

10 JE-RN8-10

JE-RN3 (or 4)-6 used for PS2020-6 series profile

JE-RN4 (or 5, 6)-8/3030 used for PS3030-8 profile

JE-RN4 (or 5, 6)-8/4040 used for PS4040-8 series profile

JE-RN4 (or 5, 6, 8)-10 used for PS4545-10 series profile and PS4040L-10 series profile
