PBA Leader Motion

Spring Nut

Aluminium Profile Accessories   »   Nuts

Download STEP File

Product Specifications

Slot No. Material Weight Order No.
8/3030 Steel, Nickel-plated 0.01kg JE-SN5-8/3030
8/3030 JE-SN6-8/3030
8/3030 JE-SN8-8/3030
8/4040 JE-SN5-8/4040
8/4040 JE-SN6-8/4040
8/4040 JE-SN8-8/4040
10 JE-SN5-10
10 JE-SN6-10
10 JE-SN8-10

Universally usable mounting element fits into the profile groove at any desired point by means of leaf spring thrust piece

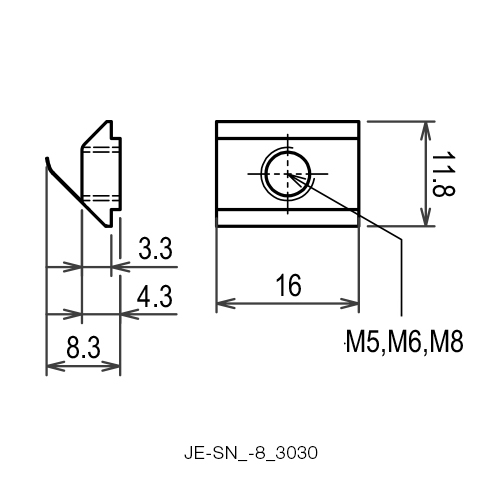

JE-SN5(or 6,8)-8/3030 used for PS3030-8 series profile

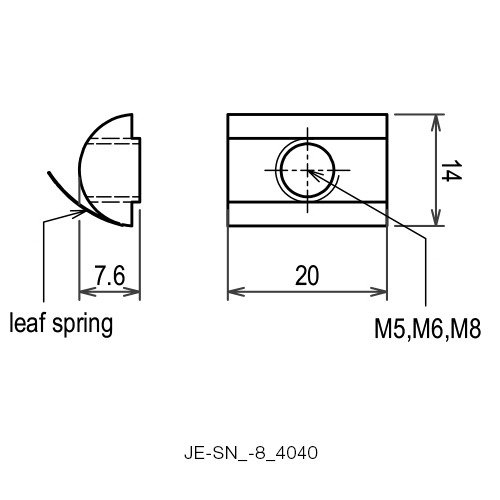

JE-SN5(or 6,8)-8/4040 used for PS4040-8 series profile

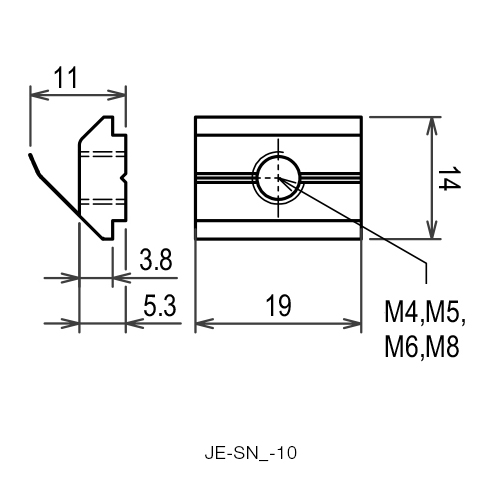

JE-SN5(or 6,8)-10 used for PS4545-10 series profile or PS4040L-10 profile
