Multi-Block 9400

Aluminium Profile Accessories   »   Blocks

Download STEP File

Product Specifications

Slot No. Material Weight Order No.
6 Nylon & Steel Nut 0.01kg ACC-MB94003-6
8 ACC-MB94001-8
8 ACC-MB94002-8
10 ACC-MB94004-10
  ACC-MB94100

ACC-MB94003-6 used for PS2020-6 series profile

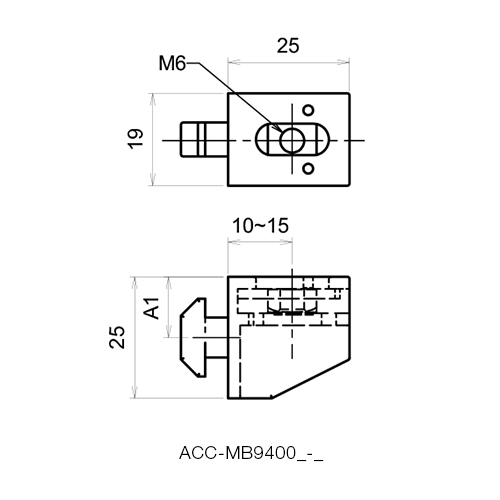

ACC-MB94001-8 used for PS3030-8 series profile A1=8mm, A2=2.2mm

ACC-MB94002-8 used for PS4040-8 series profile A1=12mm, A2=4.5mm

ACC-MB94004-10 used for PS4545-10 series profile A1=9mm, A2=6.0mm

ACC-MB94100 Spacer, Thickness=3mm for -8 & -10 Multi-block
