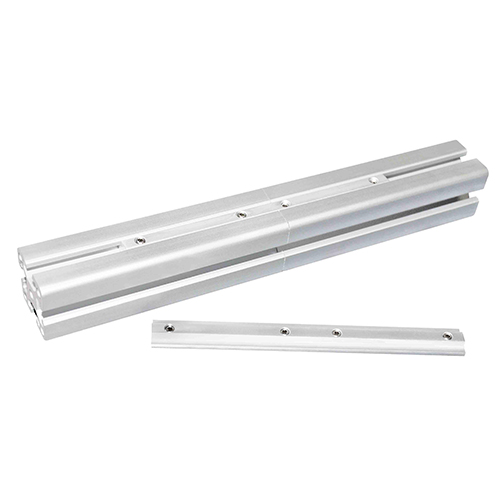

Joint Connector

Aluminium Profile Accessories   »   Connectors

Download STEP File

Product Specification

Slot No. Material Weight Order No.
8/3030 Steel, Zinc-plated 0.04kg
0.07kg
0.2kg
JE-Joint Connector-8/3030
8/4040 JE-Joint Connector-8/4040
10 JE-Joint Connector-10

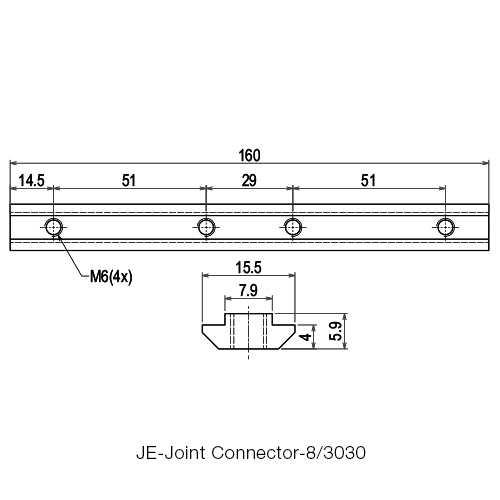

JE-Joint Connector-8/3030 supplied with 4 pieces M6 set screw, to be used in PS3030-8 series profile

JE-Joint Connector-8/4040 supplied with 4 pieces M6 set screw, to be used in PS4040-8 series profile

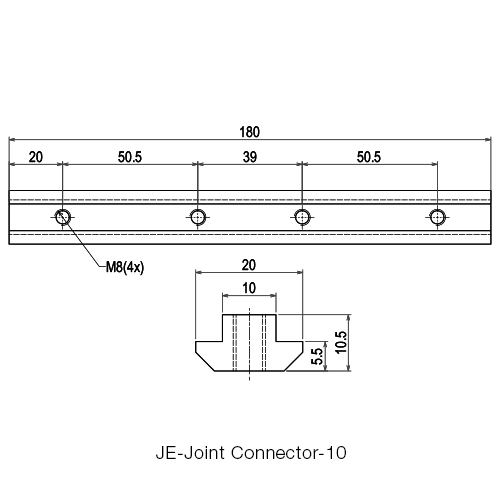

JE-Joint Connector-10 supplied with 4 pieces M8 set screw, to be used in PS4545-10 series profile and PS4040L-10 series profile.
