KJP 0450-1B | Chain Pitch(P)=45mm

Mechanical Components   »   KJP Cable Chains

H value corresponding to the radius of curvature

R 50 75 95 125 150
H 140 190 230 290 340

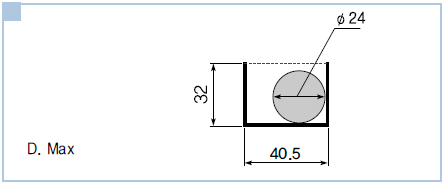

A-A Cross Section / D.Max

End Bracket
