KJP 0320-2B | Chain Pitch(P)=15mm
Mechanical Components » KJP Cable Chains

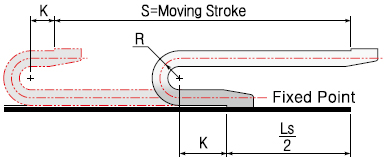

H value corresponding to the radius of curvature
| R | 37 | 50 | 75 | 100 |
|---|---|---|---|---|
| H | 99 | 125 | 175 | 225 |

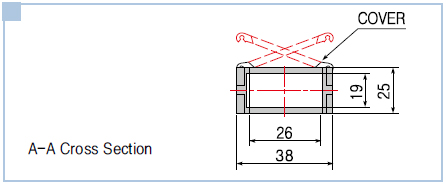

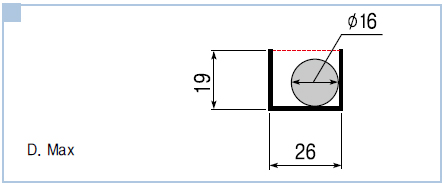

A-A Cross Section / D.Max
End Bracket
