Bolt Connector
Aluminium Profile Accessories » Connectors
Product Specifications
| Slot No. | Material | Weight | Order No. |
|---|---|---|---|
| 8 | Steel | 0.08kg | JE-BC4040-8 |
| 8 | Steel | 0.15kg | JE-BC8080-8 |

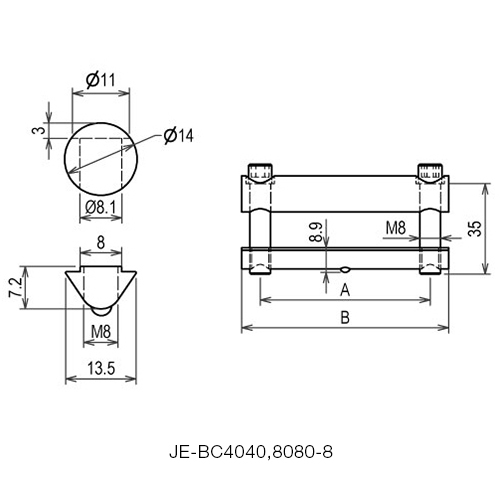

Used for PS4040 series profile, A=25.2mm, B=40mm
Used for PS4080/8080 series profile, A=65.7mm, B=80mm
